Custom Hex Taper Details
Hover over any image for an animated view of that particular rod under a casting load.
At the bottom of the page is a direct comparison and selective overlay of all the tapers.
Except for the ST, all of the tapers are 8'0" 5 weight two piece rods casting 50' of DT line.

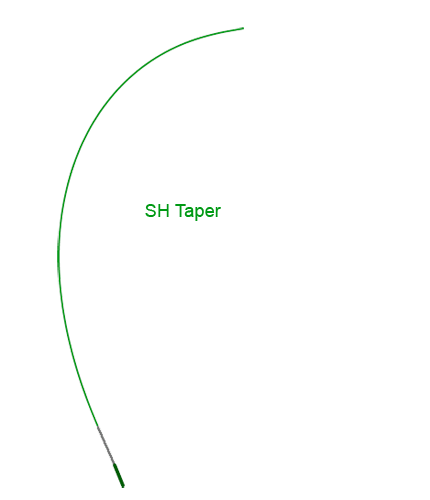

SH Tapers
The SH series of tapers has turned out to be extremely versatile and is my personal go-to rod in most circumstances. It is a medium-fast action rod with some select softening along the length to change the flex and assist in roll casting and shorter casts. It works just as well on a 10' or 50' cast, is very easy to cast and quite accurate. A little more powerful and slightly faster than the FTS taper, it also has a bit more character. Plenty of power for bigger fish and it works well both hollowed and solid, with the hollowed versions being my personal preference, which are crisper in action and a little softer overall.  Wonderful all around rod for everything from dries to dropper rigs.
Available Weights and Configurations
  • 3 weight - 7'0" 2 pc
  • 4 weight - 7'6" 2 or 3pc
  • 5 weight - 8' or 8'3" 2 or 3pc
  • 6 weight - 8'3" or 8'6" 2 or 3pc
  • 7 weight - 8'6" 2 or 3pc
  • 8 weight - 8'6" 2 or 3pc

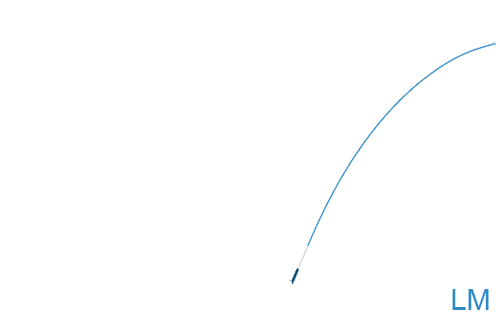

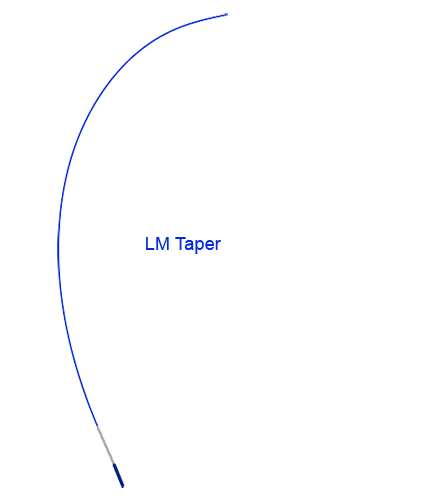

LM Tapers
The LM tapers are an adaptation of the LL tapers described below. I found that in larger weight rods, and sometimes simply in longer length rods, I often like to have a little extra power. Sometimes for casts and other times for extra fish fighting ability. The LM tapers maintain the smooth, progressive feel and softer tip of the LL but is a bit faster and more powerful in the lower 1/2. I strongly recommend hollowing this rod which help keeps the weight to a minimum and gives it a little extra crispness. No tip bounce and smooth, powerful turnover characterize this rod series. One of the best do it all fishing rod I have cast. You won't be caught under-gunned but it is still sensitive and delicate when needed.
Available Weights and Configurations
  • 3 weight - 7'2" 2 pc
  • 4 weight - 7'9" 2 or 3pc
  • 5 weight - 8' or 8'3" 2 or 3pc
  • 6 weight - 8'3" or 8'6" 2 or 3pc
  • 7 weight - 8'6" 2 or 3pc
  • 8 weight - 8'6" 2 or 3pc

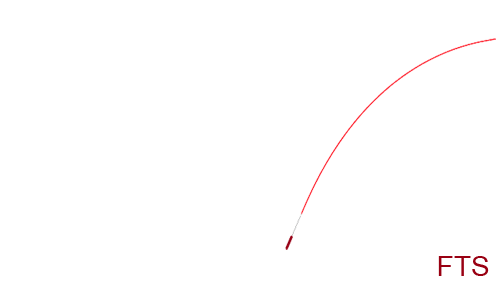

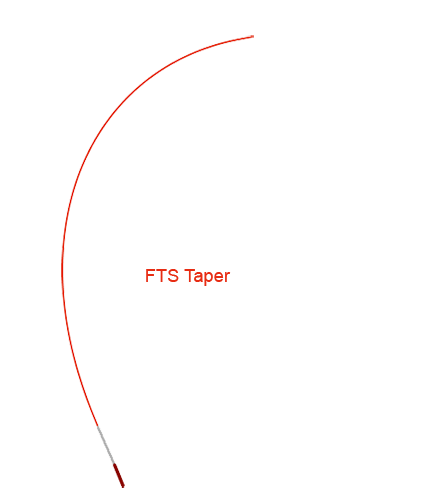

FTS Tapers
The FTS tapers came out of an affection for smooth, progressive action rods. The action is a progressive medium, similar to a Garrison or some Howell tapers. An extremely easy rod to cast. It excels at roll casting and short to medium-long casts. A favorite of many. If you like some of the more modern Thomas tapers, Garrison or Howell tapers, this is is a wonderful rod in the same family.  Gives back what you put into it.
Available Weights and Configurations
  • 3 weight - 6'9" 2 pc
  • 4 weight - 7'6" 2 or 3pc
  • 5 weight - 7'9"' or 8' 2 or 3pc
  • 6 weight - 8' 2 or 3pc
  • 7 weight - 8'3" 2 or 3pc

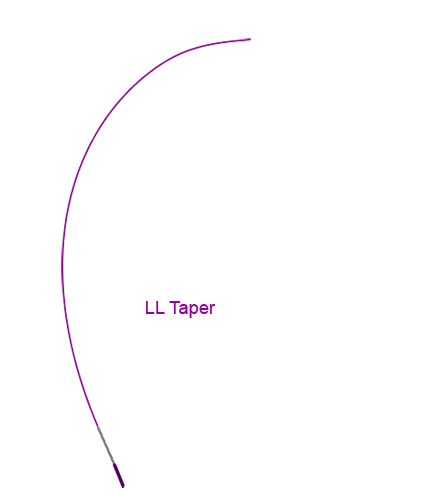

LL Tapers
Like the FTS rod tapers, this particular rod series came out of my fondness for classic progressive Garrison tapers. Garrison rods are exceptional do-it-all rods with even, predictable action throughout the rod's range. They can easily handle one line weight in either direction making them a great go-to rod. The LL tapers take the best parts of the Garrison tapers and gave them a slightly faster action while preserving the progressive feel overall. There is a sharp softening in the upper 1/4 of the rod to help it throw off the tip in close and make for snappier turnover with dries. This taper series takes very well to hollowing. The LLs put a smile on my face each time I cast one.
Available Weights and Configurations
  • 3 weight - 7'0" 2 pc
  • 4 weight - 7'6" 2 or 3pc
  • 5 weight - 8' or 8'3" 2 or 3pc
  • 6 weight - 8' or 8'3" 2 or 3pc
  • 7 weight - 8'6" 2 or 3pc

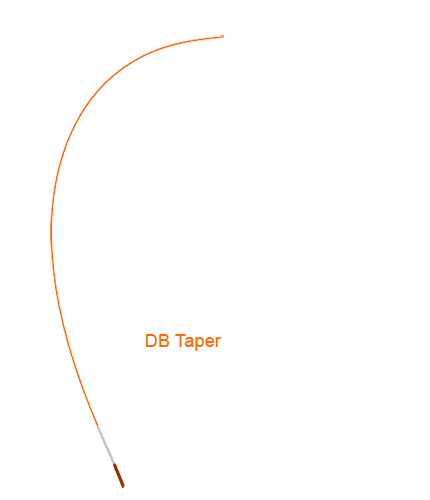

DB Tapers
The DB tapers make for a faster action rod with similar characteristics to some of the more powerful Dickerson tapers and can be characterized as medium-fast to fast overall. It is tip action in essence, flexing mostly in the upper 1/2 and will only bend into the stouter butt section on longer casts or when working bigger fish. An excellent western rod that will cast easily of the tip with a quick wrist snap, but can throw an entire line without a problem. I used my hollowed personal copy of this taper in New Zealand and it was a great fit. This series of rods takes especially well to hollowing.
Available Weights and Configurations
  • 3 weight - 6'9" 2 pc
  • 4 weight - 7' or 7'6" 2 or 3pc
  • 5 weight - 7'9" or 8' 2 or 3pc
  • 6 weight - 8' 2 or 3pc
  • 7 weight - 8'3" 2 or 3pc

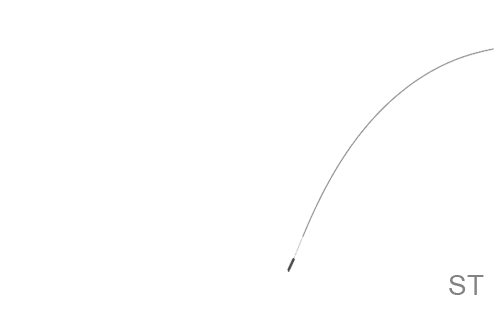

ST (Steelhead) Tapers
Every year some friends and I take a week or two and spend it snowshoeing and steelheading. I make a few new rods for the trip each year, continually trying to nail the perfect steelhead rod. Each year I get closer, and after 7 years I finally have one that I really, really like. It is a monster of a rod with a very stout butt section, progressive mid with just a hint of softening towards the tip without making it bounce or feel too soft when throwing big flies or lots of line. The rod is big, but balanced very well and is easy to fish all day long. Yes, I just said that and I stand behind it.

It is also exceptional as a saltwater rod or simply any time there is the possibility of long casts, big water and/or big fish.
Available Weights and Configurations
  • 7 weight - 8'6" 2 or 3 pc
  • 8 weight - 8'6" 2 or 3 pc
  • 9 weight - 8'6" 2 or 3 pc
  • 8 weight - 8'9" 4 piece
  • 9 weight - 9'0" 4 piece
Rod Deflection Comparison
Click on any of the colored thumbnails below to toggle the corresponding rod's deflection image on or off.
SH Taper
LM Taper
FTS Taper

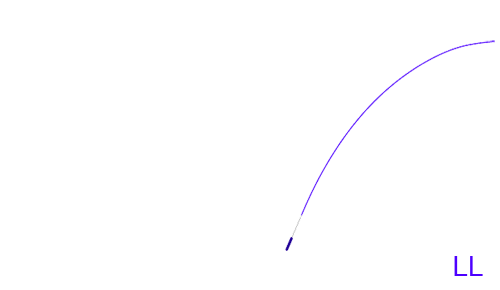

LL Taper

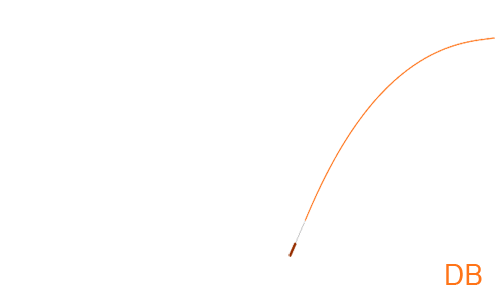

DB Taper
